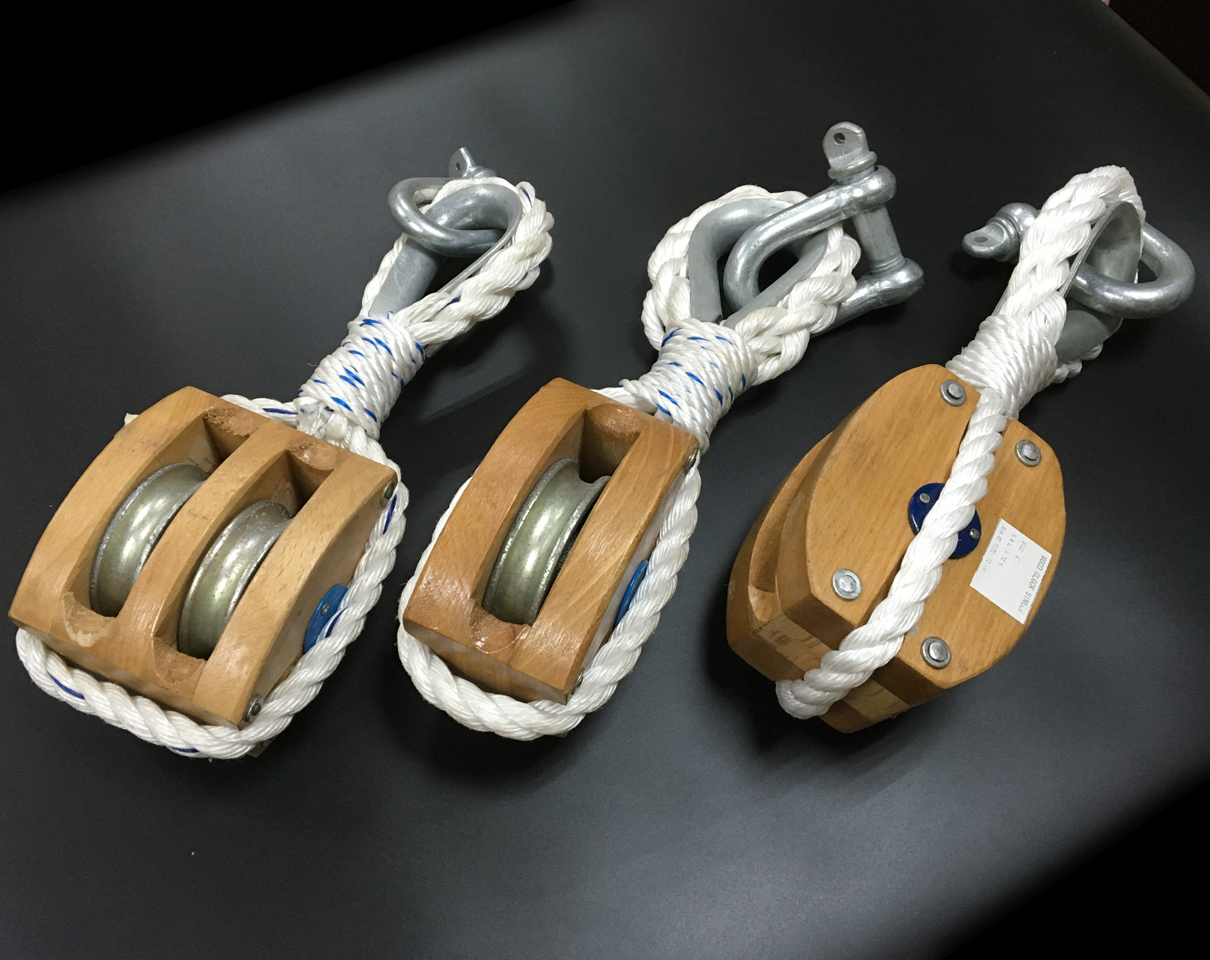

  • 231741 External bound wood blocks

  • 231741 External bound wood blocks

    外束式木滑车
    External bound wood blocks with thimble and shackle
    IMPA No.: 231741-231748
    • ￥0.00
      ￥0.00
Description:
外束式木滑车
External bound wood blocks with thimble and shackle
IMPA No.: 231741-231748
External bound wood blocks with thimble and shackle
IMPA No.: 231741-231748

IMPA
 TYPE
 SHELL SHACKLE
 THIMBLE
 SHEAVE
 ROPE SIZE S.W.L. WEIGHT
HEIGHT NOS SIZE MM TONS KGS
231741

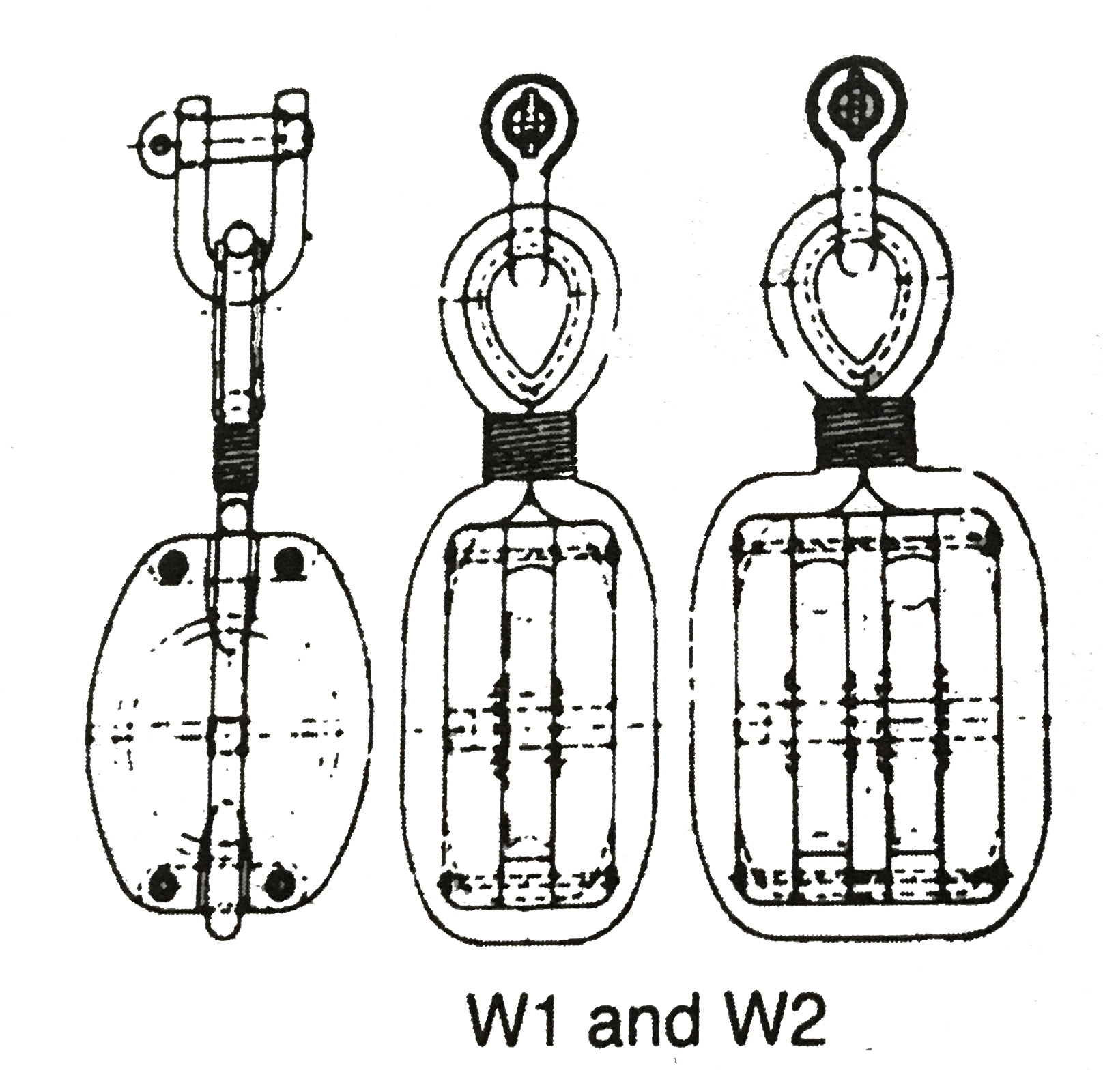

 W1 100 SD 10 B 8 SINGLE
 65 10 0.40 0.62
231742 120 SD 12 B 10 80 12 0.52 1.10
231743 140 SD 14 B 12 90 14 0.72 2.74
231744 180 SD 20 B 14 120 18 1.16 3.90
231745 W2 100 SD 10 B 8
65 10 0.70 0.72
231746 120 SD 12 B 10 80 12 0.98 1.44
231747 140 SD 14 B 12 90 14 1.32 4.48
231748 180 SD 20 B 14 120 18 2.20 8.58
